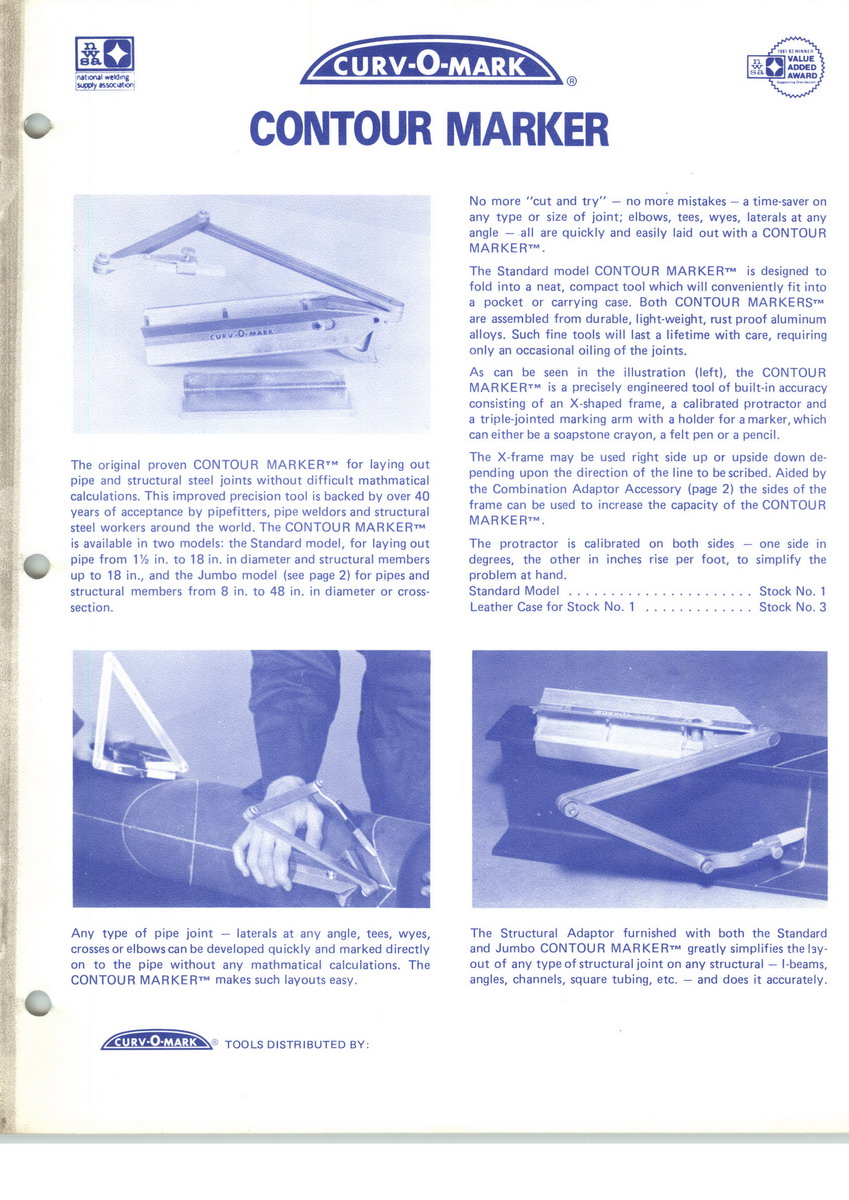

The Curv-O-Mark Contour Marker is a compact, time-saving tool used to lay out pipe and structural steel joints. Laterals at any angle, tees, wyes, crosses, elbows-any type or size of joint can be quickly and precisely laid out. No more complicated mathematical formulas. No more cut and try. No more needless material waste.#1 Contour Marker Standard

The Contour Marker can be used to lay out pipe from 1-1/2 to 18 in. diameter, or structural steel members up to 18 in. The Contour Marker consists of an X-shaped frame, calibrated protractor, and a triple jointed marking arm and holder. The holder accepts a soapstone crayon (included), felt pen or pencil. The frame easily folds into a compact toolkit. It can be used right side up or upside down, depending on the direction of the line to be scribed The protractor is calibrated on both sides-one in degrees, the other in rise inches-per-foot-to service any type of measurement need. The unit comes with a Structural Adaptor designed to simplify the layout of structural joints, including l-beams, angles, channels, square tubing and similar shapes.

The optional T102 Combination Adaptor Accessory allows the Contour Marker to lay out joints on larger size pipe, as well as scribe compound angles with just one setting. The Contour Marker is made from durable, lightweight aluminum. It requires minimal maintenance, only occasional oiling of the joints, to provide long service life.
